Thread Milling Applications
Thread milling offers flexibility, accuracy, and excellent surface finish. Our carbide thread milling tools are engineered for stable, precise thread generation.
Applications
Internal thread milling
External thread milling
Multi‑start threads
Large‑diameter threads
Thread repair operations
Advantages
Reduced cutting forces
Excellent chip control
High accuracy in difficult materials
Custom thread mills available

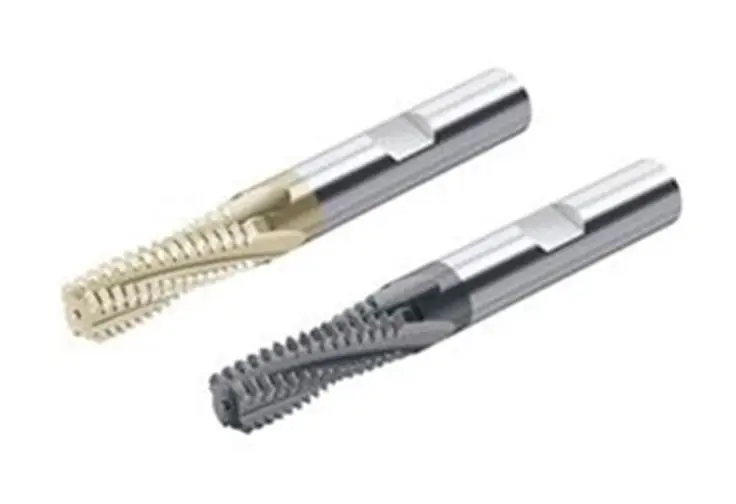

from ø2.3mm cut dia
Helical & Straight Flute versions
Standard Thread Forms Available
Full Profile ISO, UNC, UNF, UNEF, UNJ, Pg, BSW, BSF,
BSP/G, BSPT/R, NPT, NPTF
..........................................................................................................
from ø12mm cut dia
Multi-tooth cutters available
Reach up to 105mm
Standard Thread Forms Available
Full Profile ISO, UN, Whitworth, BSPT/R, NPT, NPTF
..........................................................................................................
from ø1.55mm cut dia
Reach up to 3x thread dia
For cutting up from the bottom of the thread
Standard Thread Forms Available
Full Profile ISO, UNC, UNF, UNJ, MJ, BSP, BA, Acme, Stub Acme, Trapezoidal
..........................................................................................................
from ø9mm cut dia
Reach up to 17mm
Standard Thread Forms Available
Full Profile ISO, UN, Whitworth
..........................................................................................................
from ø1.18mm cut dia
3 & 4 flute versions
Reach up to 30mm
Standard Thread Forms Available
Full & Partial Profile ISO, Full Profile UNC/UNF, BSW/BSF, BSP
..........................................................................................................
from ø9.7mm cut dia
3 and 6 teeth inserts
Reach up to 42mm
Standard Thread Forms Available
Full & Partial Profile ISO, Full Profile Whitworth, Acme, Stub Acme, Trapezoidal
..........................................................................................................
from ø7mm cut dia
3 tooth inserts
Reach up to 35mm
Standard Thread Forms Available
Full & Partial Profile ISO
..........................................................................................................
from ø12mm cut dia
3 and 6 teeth inserts
Reach up to 56mm
Standard Thread Forms Available
Full & Partial Profile ISO, Full Profile Whitworth, Acme, Stub Acme, Trapezoidal
..........................................................................................................
from ø17.7mm cut dia
3 and 6 teeth inserts
Reach up to 66mm
Standard Thread Forms Available
Full & Partial Profile ISO, Full Profile UN, Whitworth, Trapezoidal
..........................................................................................................
from ø21.7mm cut dia
3 and 6 teeth inserts
Reach up to 90mm
Standard Thread Forms Available
Full & Partial Profile ISO, Full Profile Whitworth
..........................................................................................................
from ø39mm cut dia
End mill, shell mill & disk mill cutter versions
Standard Thread Forms Available
Full & Partial Profile ISO, Full Profile UN
Premier Form Tools
Manufacturers of Precision Ground Carbide Cutting Tools
Serving engineering, aerospace, automotive, medical, and precision machining industries.
