Grooving / Boring / Turning Tools

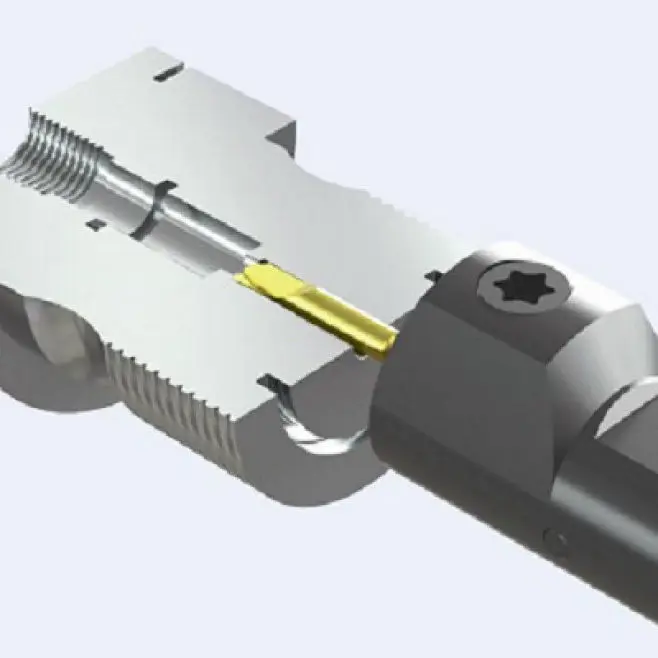

simturnAX

simturn AX
Internal Tooling System

Grooving from ø2mm minimum bore diameter
Boring from ø0.3mm minimum bore diameter
Copying / profiling from ø2.2mm minimum bore diameter
Chamfering from ø1mm minimum bore diameter
Back boring from ø3.2mm minimum bore diameter
Threading from ø0.73mm minimum bore diameter
Pre-part off and chamfer from ø3.7mm minimum bore diameter
Face grooving from ø6mm minimum outside diameter

..........................................................................................................

simturnDX

simturn DX
Internal Tooling System

Grooving from ø7mm minimum bore diameter
Boring from ø7mm minimum bore diameter
Copying / profiling from ø7mm minimum bore diameter
Chamfering from ø7mm minimum bore diameter
Back boring from ø7.8mm minimum bore diameter
Threading from ø7mm minimum bore diameter
Pre-part off and chamfer from ø8mm minimum bore diameter
Face grooving from ø12mm minimum outside diameter

..........................................................................................................

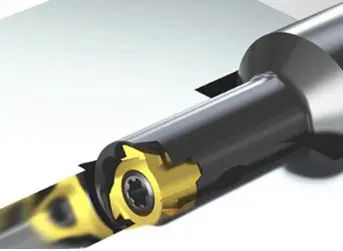

simturnPX

simturn PX
Internal Boring System

Boring from ø7.83mm minimum bore diameter

..........................................................................................................

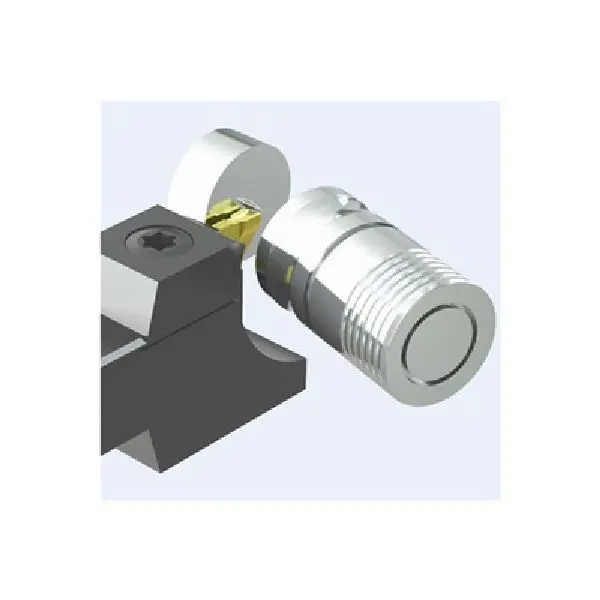

simturnH2

simturn H2
Tooling System

Internal/External Grooving, Grooving & Profiling, Parting-Off
Width of cut up to 5mm
Tmax up to 18mm

..........................................................................................................

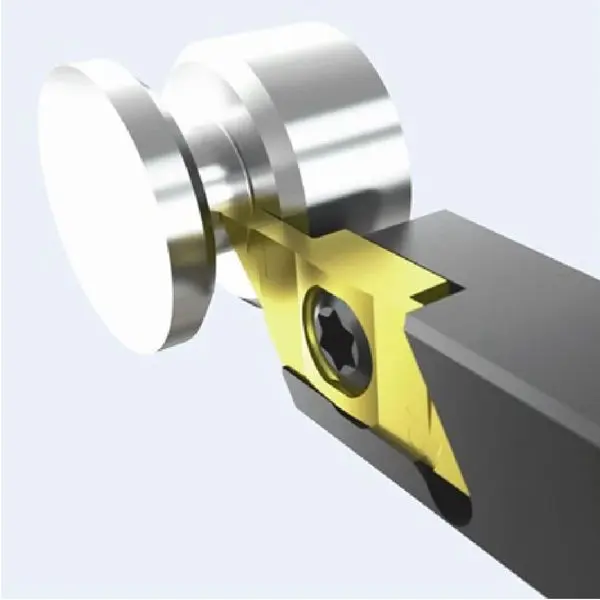

simturnK2

simturn K2
External Tooling System

for small part machining
Grooving, Grooving & Profiling, Parting-Off, Threading, Back Turning
Width of cut up to 3mm
Tmax up to 7mm



..........................................................................................................

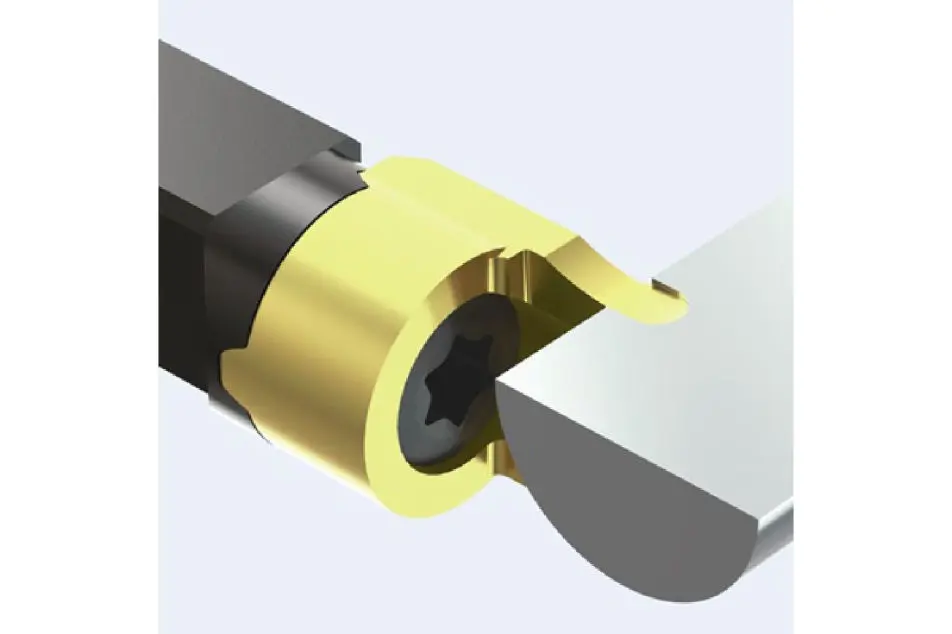

simturnC4

simturn C4
External Tooling System

for small part machining on Swiss Auto type machines
Grooving, Grooving & Profiling, Parting-Off, Threading, Turning, Back Turning
Width of cut up to 1.5mm
Tmax up to 5.5mm

..........................................................................................................

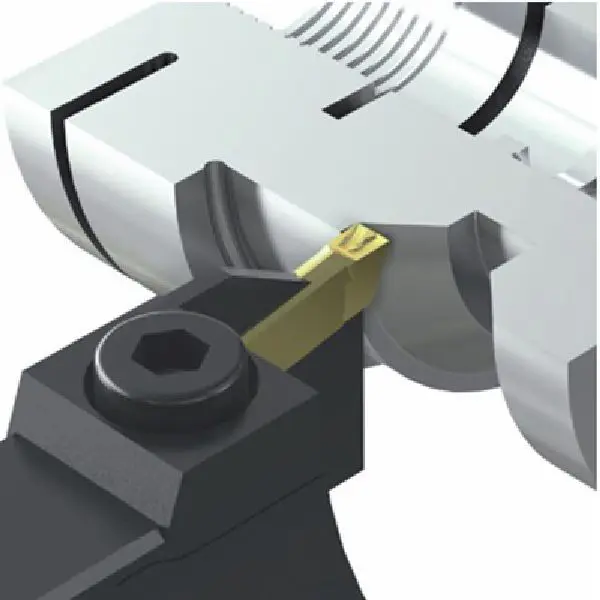

simturnGX

simturn GX
Tooling System

Internal/External Grooving, Grooving & Profiling, Parting-Off, Threading, Poly-V Grooving
Width of cut up to 6mm
Tmax up to 26mm

..........................................................................................................

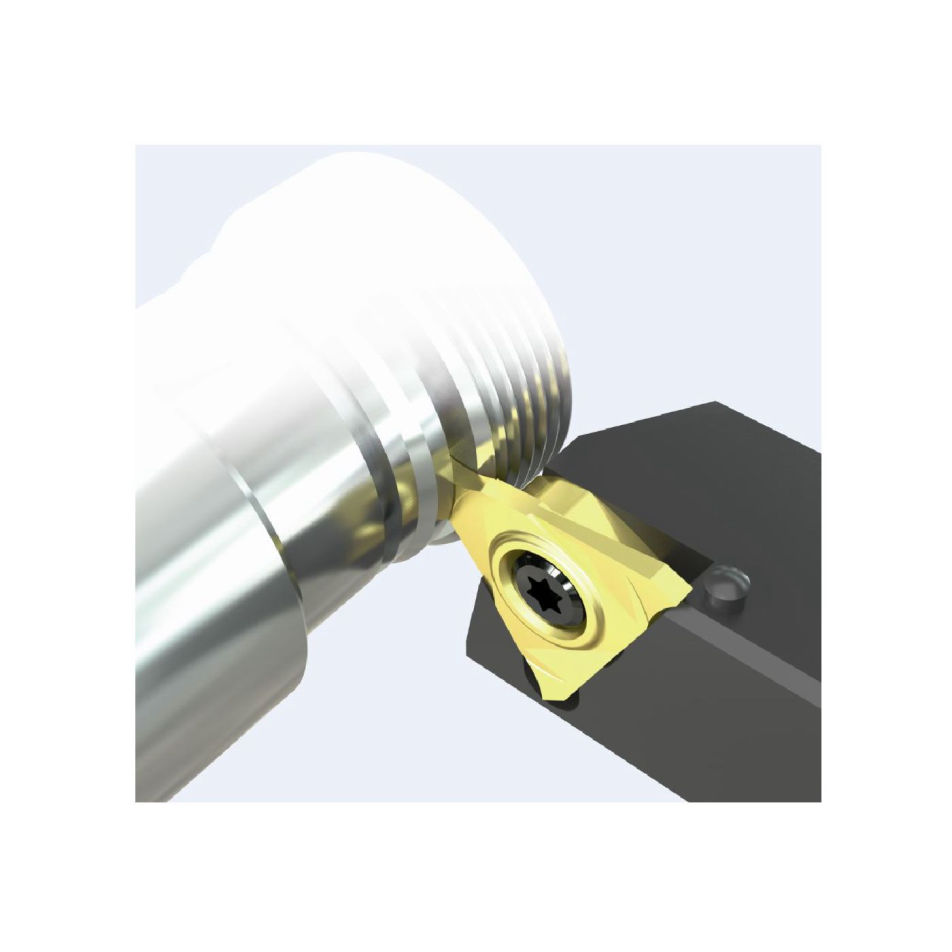

simturnE3

simturn E3
Tooling System

Internal/External Grooving, Threading, Parting-Off,
Face Grooving
Width of cut up to 5.29mm
Tmax up to 5mm



..........................................................................................................

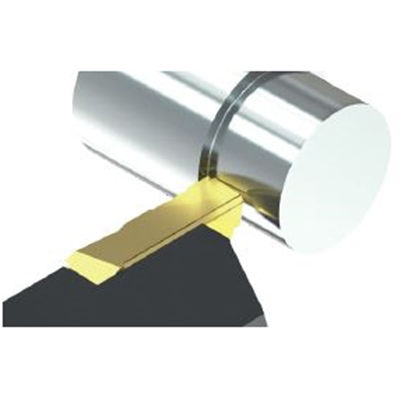

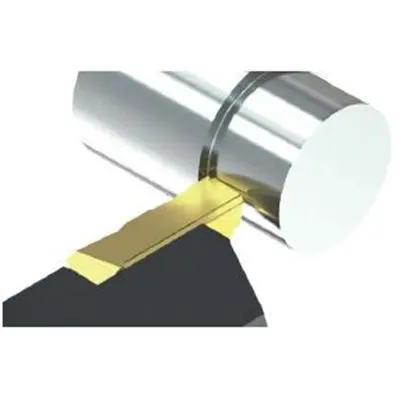

simturnFX

simturn FX
External Tooling System

Grooving, Grooving & Profiling, Turning, Turning & Profiling, Back Turning, Face Grooving
Width of cut up to 5mm
Tmax up to 5mm

..........................................................................................................

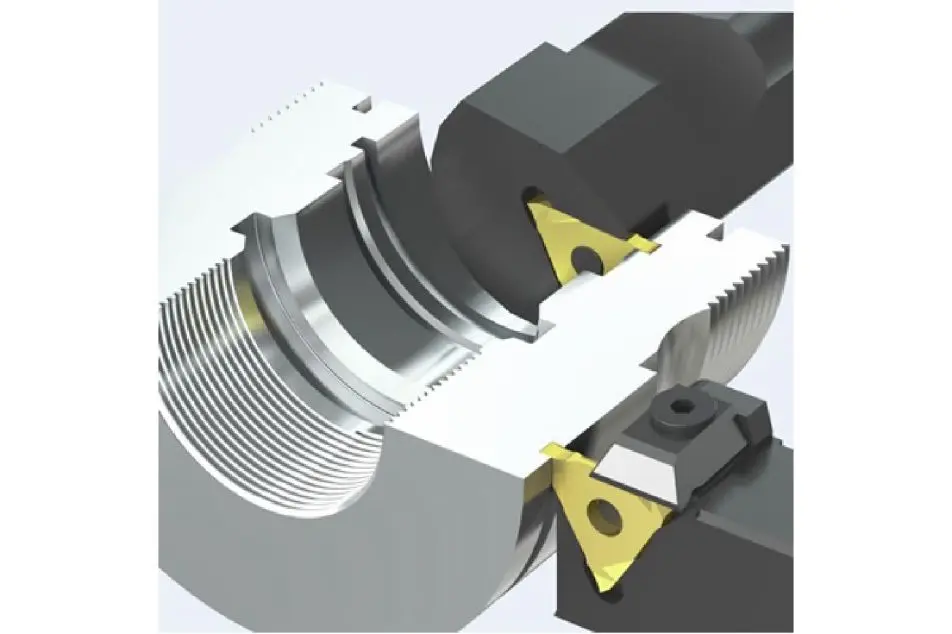

simturnE12

simturn E12
Tooling System

Internal/External Grooving, Parting-Off, Face Grooving, Poly-V Grooving
Width of cut up to 5.29mm
Tmax up to 6mm

..........................................................................................................

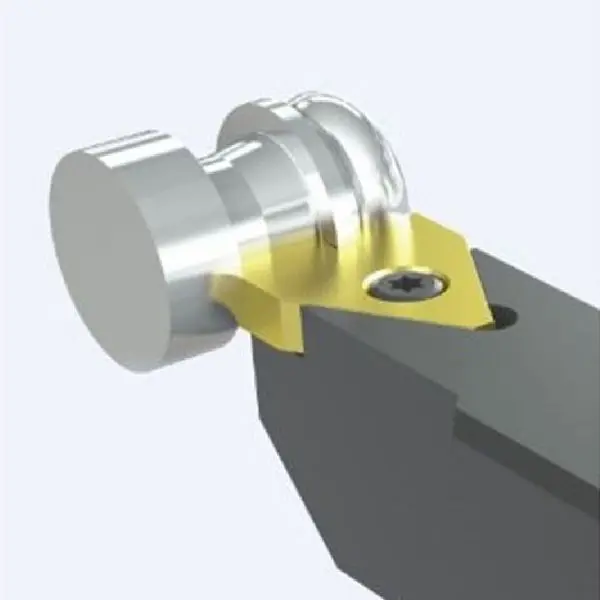

simturnDecolletage

simturn Decolletage
External Tooling System

semi-finished inserts for special form tools
Available in 10, 12, 16, 20, 25, 32, 48 & 66mm widths

..........................................................................................................

Premier GrooveTurn

GrooveTurn
External Tooling System

Grooving, Grooving & Turning
Width of cut up to 5mm
Tmax up to 40mm
