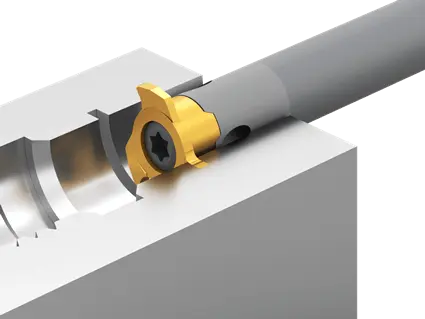

3 & 4 flute versions
Reach up to 25mm
Groove Milling from ø6mm minimum bore diameter
Full radius groove milling from ø4mm minimum bore diameter
Thread Milling from ø1.38mm minimum bore diameter
Chamfering from ø6mm minimum bore diameter
Keyway Milling from ø4.5mm cut diameter
..........................................................................................................

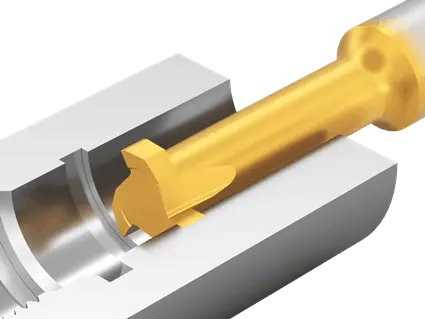

from ø6.7mm cut dia
Reach up to 35mm
Groove milling, Thread milling
..........................................................................................................
from ø9.7mm cut dia
Reach up to 42mm
3 & 6 tooth inserts
Groove Milling, Thread Milling, Chamfering
..........................................................................................................
from ø13.7mm cut dia
Reach up to 56mm
3 & 6 tooth inserts
Groove Milling, Thread Milling, Chamfering
..........................................................................................................
from ø14.7mm cut dia
Reach up to 66mm
3 & 6 tooth inserts
Groove Milling, Thread Milling, Chamfering, Face Milling
..........................................................................................................
from ø19.7mm cut dia
Reach up to 90mm
3 & 6 tooth inserts
Groove Milling, Thread Milling, Chamfering, Face Milling, Corner Rounding, Keyway Milling
..........................................................................................................

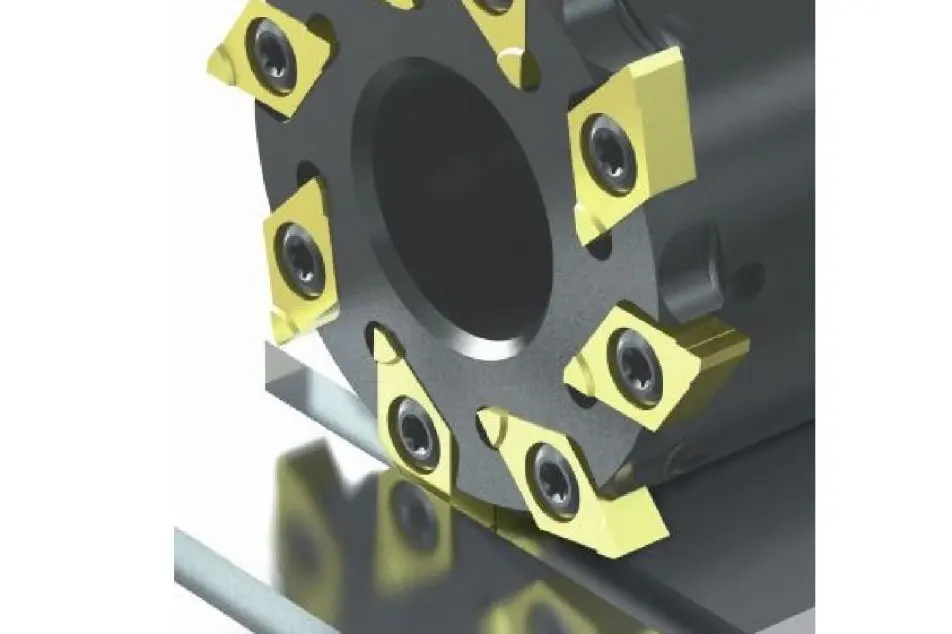

ø100mm cut dia
Twin edged inserts
Tmax 18mm
..........................................................................................................
Available in ø39, 50, 63, 80 and 100mm cut diameters
Twin edged inserts
End mill, shell mill and disc mill versions
..........................................................................................................
Precision ground location system offering vibration cushioned insert seats, improved radial and axial runout, and higher torque transmission

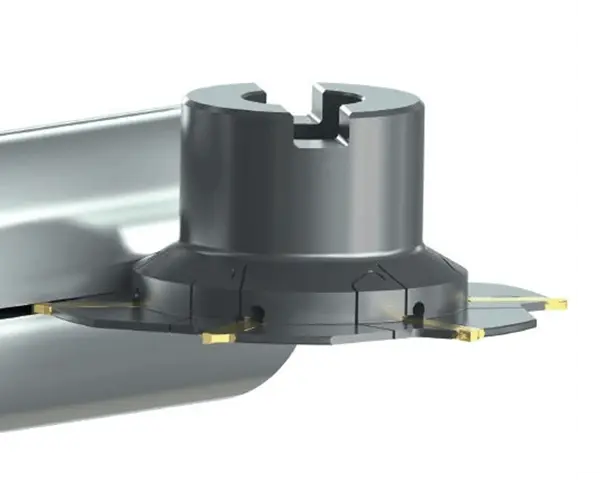

ø28mm cutting diameter
Up to 9.35mm depth of cut
1.2mm to 2.4mm wide inserts with 6 teeth
1.5mm to 2.5mm wide inserts with 3x3 alternating teeth for a smooth cut
ø50mm cutting diameter
Up to 16.5mm depth of cut
0.5mm and 1.0mm wide inserts with 12 teeth
1.5mm to 6mm wide inserts with 6x6 alternating teeth
..........................................................................................................
Available in ø39, 44, 50, 63, 75, 80 and 100mm cut diameters
Triple edged inserts
End mill, shell mill, Capto and disc mill versions
Tmax up to 65mm
..........................................................................................................
Precision ground location system offering vibration cushioned insert seats, improved radial and axial runout, and higher torque transmission

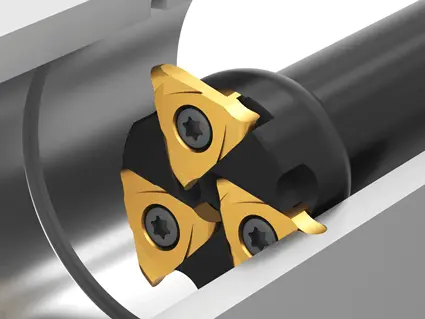

Groove milling available in ø27.7mm, ø34.7mm, ø36.7mm, & ø39.7mm cut diameters
6.5mm up to 13.5mm depth of cut
1mm to 5mm wide inserts with 3x3 alternating teeth for a smooth cut

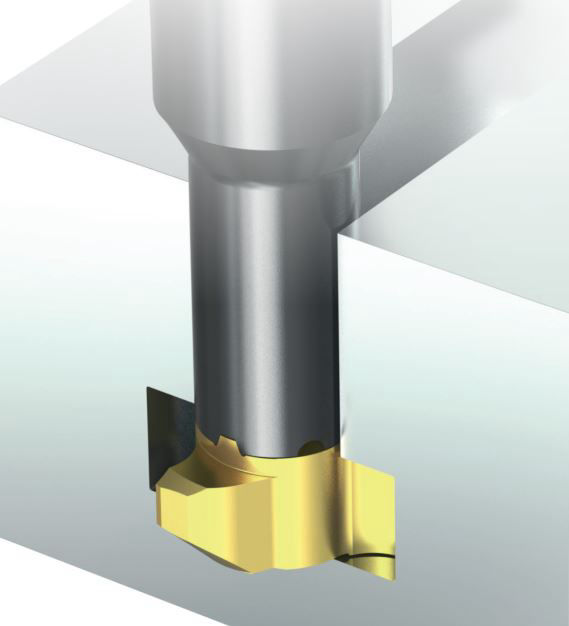

T-slot milling available in ø17, 20, 24 and 31mm cut diameters
Reach up to 85mm
T-slot widths of 7.2mm, 8.2mm and 9.2mm
..........................................................................................................

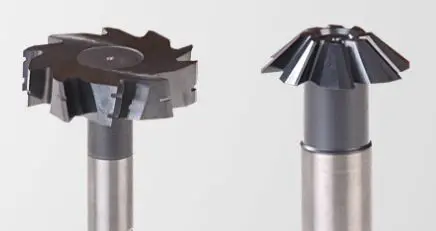

T-slot cutters from 2mm to 14mm wide
Multi-tooth dovetail cutters from ø12mm to ø38mm
Internal and external dovetail options with 45° and 60° angles
..........................................................................................................

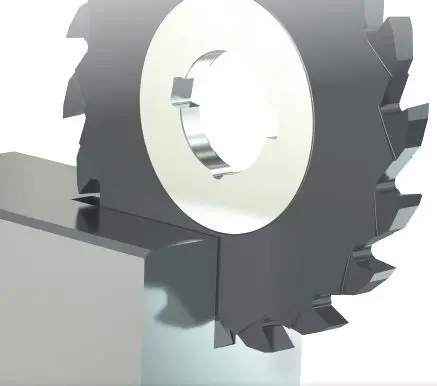

ø50mm & ø63mm Disc Mills
Up to 15mm depth of cut
From 2mm to 10mm wide with 7x7 or 9x9 alternating teeth
